30' External Halyard Flagpole w/ Collar (ECX30)

$1,647.50
Current Stock:
Butt Diameter:
5"
Top Diameter:
3"
Wall Thickness:
0.125
Suggested Flag Size:
5' x 8'
Max Windspeed (Flagged):
85 MPH
Max Windspeed (Unflagged):
104 MPH
Origin:
United States

Frequently Bought Together:

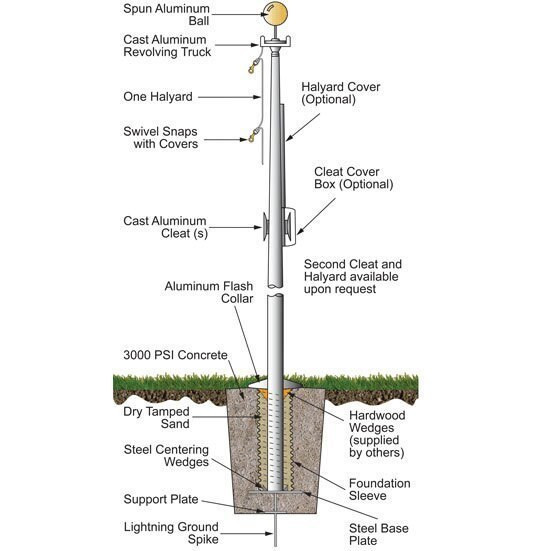

A diagram showing the different parts of an outdoor flagpole with an external halyard.
Inc. Tax
Ex. Tax

Description

Draw more attention to your business using one of our outdoor flagpoles! This flagpole is made of aluminum and comes in four different finishing options. At 30 feet, this pole is about as tall as a two to three-story building. The system used for raising and lowering a flag is an external halyard, meaning that the rope used is located on the outside of the pole, as opposed to an internal halyard where it is located inside.

As an inground flagpole, the lower part of the pole must be installed below the surface using the included flash collar and foundation sleeve. Please refer to our download links below for instructions on installing this flagpole.

To achieve a good proportion between the flag size and flagpole height, we suggest using a 5’ by 8’ flag. This flagpole is wind-rated and can withstand a maximum windspeed of 85 MPH while a flag is attached and 104 MPH when one isn’t.

What’s included?

  • Gold anodized aluminum ball ornament
  • Cast aluminum revolving truck
  • Solid braided polypropylene halyard
  • Swivel flag snaps with vinyl snap covers
  • Cast aluminum cleat with mounting screws
  • Spun aluminum flash collar
  • Galvanized steel foundation sleeve

If you would like to customize your pole with a different truck, ornament, halyard, or optional cleat cover box, please call us at 800-858-8776.

Freight costs apply when shipping this flagpole. Please call us or fill out the form below to request a quote. Otherwise, one will be provided to you after your order has been placed.
